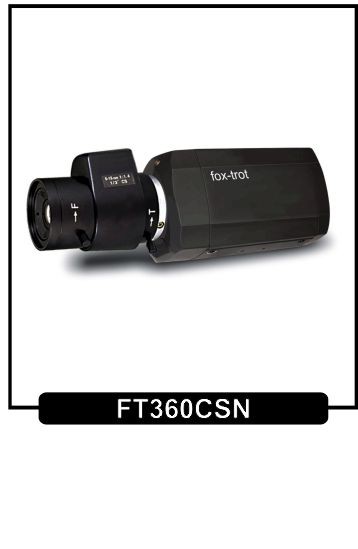

FT-360CSN
FT360CSN
C/CS Mount Box Camera
Features:
* 1/3" Sony Super HAD-II CCD
* High Resolution: 600 TVL
* Automation Backlight Compensation
* Day Night Control
| MODEL | FT-360CSN |
| Image Sensor | 1/3" Sony Super HAD-II CCD |
| Video Format | PAL/ NTSC |
| Effective Pixels | PAL:768(H)x582(V), :NTSC:752(H)x 494(V) |
| Horizontal Resolution | B&W:600TVL, Color:540TVL |
| Mini Illumination | 0.05 Lux/F1.2, |
| Electronic Shutter | PAL:1/50~1/110,000 , NTSC: 1/60~1/100,000 |
| Synchronization | Internal |
| S/N Ration | >60dB |
| Video Output | 1Vp-p Composite Output (75Ω/BNC) |
| Lens Mount | C/CS Mount |
| Shutter/AGC | Auto/Mount |
| White Balance | Yes |
| Backlight | Yes |
| Day/Night | Yes |
| Power Supply | DC12V+-10% |
| Current Consumption | Max 250mA |
| Working Tempurature | 0o C~+50o C |
